ProSteel: Easy to use BS5950 steel design software

"Keep up the good work, ProSteel is absolutely superb and is saving me so much time (and heartache!). The more I use it, the more I like it."

Key features

Our programs run on Windows XP, Vista and Windows 7/8/10 (32-bit or 64-bit) systems.

ProSteel steel beam calculation

A quick tour round ProSteel

ProSteel desktop
ProSteel steel beam calculation

A quick tour round ProSteel

ProSteel desktop

ProSteel and SuperBeam look very similar - this is not surprising given that they share a lot of common code. Like many other Windows applications, both have a menu at the top, button bar under and status line at the bottom. You can choose the font(s) used to display and print calculations. A larger font is easier to read; a smaller font shows more information without scrolling - the choice is yours!

New for 2016: SuperBeam and ProSteel - with EuroBeam to follow - now lets you choose from one of 20 colour schemes (themes). These screenshots use the Lavender theme. You can see them all on our themes preview page.

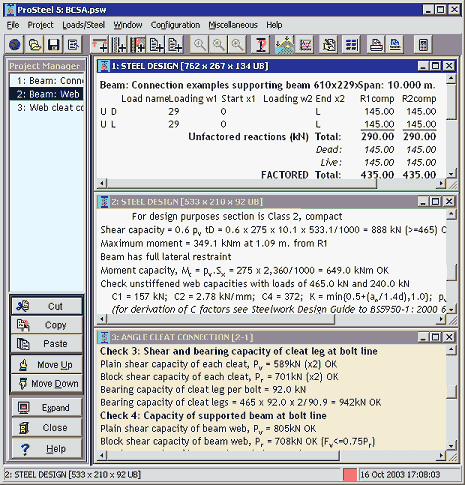

ProSteel (like SuperBeam) works with projects. A project contains one or more 'items': beams, columns, connections, text pages and OLE pages, the last containing data produced by other applications on your system. The items in the current project are listed in the Project Manager which occupies the leftmost part of the desktop.

Beams

Beam load edit

Beams

Beam load edit

Beam data is edited using a four page modeless dialog. Clicking on the 'Apply' button commits any changes that you make without closing the dialog, and you see the updated calculations in the corresponding window. 'Undo' restores the data to what it was before you started editing or last pressed 'Apply'.

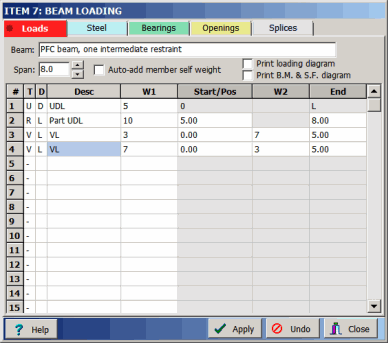

You can enter up to 30 loads per beam - dead and live loads are entered separately. As with SuperBeam, loads can be UDLs, part UDLs, point loads or variable loads. Load positions are measured from R1; when a position greater than the span is entered the member is analysed as a beam with cantilever end extending beyond R2.

Beam loading diagram B.M. & S.F. diagram
Beam loading diagram B.M. & S.F. diagram

You can also display and print beam loading and bending moment and shear force diagrams

Steel beam design parameters
Steel beam design parameters

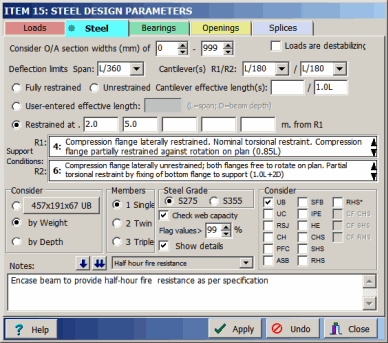

So to work out a typical beam you enter the loads, click on 'Apply'. Then click on the Steel tab (at which point you see this page of the dialog) and make any changes, then 'Apply' again. The required size on the button immediately under 'Consider' (see below) - you can click on the button to manually choose an alternative section, if you don't want the one that the program has selected. Then click on the 'Bearings' tab and change the bearing details as necessary. Click once more on 'Apply' then close the dialog and you're done.

Beam web opening edit dialog
Beam web opening edit dialog

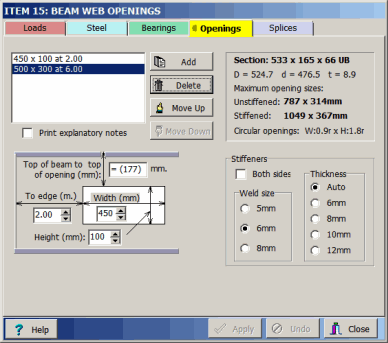

The fourth page of the beam edit dialog holds details of any openings in the beam web. Openings are analysed following the methodology in the SCI/CIRIA paper; stiffener sizes (where required) are calculated by the program

Beam edit dialog splice page
Beam edit dialog splice page

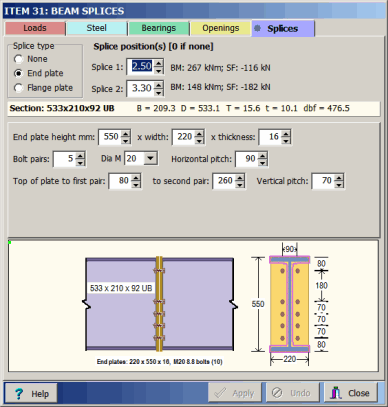

The last page holds details of any splices. Splices can be added for I-section members. They can be bolted flange plate or welded end plate splices, but if there are two splices both must be identical.

Columns

Column dialog load page
Column dialog load page

ProSteel's column edit dialog is almost the same as the one in SuperBeam. It has three pages, one each for loads, steel design parameters and base plate sizing.

Connections

Connection member dialog
Connection member dialog

Connection design is based on the BCSA 'Green Book'. The connection edit dialog has two pages. The first one lets you select the supported beam and supporting beam or column. The second page contains the connection data.

Text pages

ProSteel includes a basic text editor that will allow straightforward pages to be created. Embedded tags within the text handle tabs, underlining and overlining (for titles) and tab setting. Such text page are useful for things like standard loading pages, title pages etc.

Text page editor
Text page editor

You also have the option of adding OLE Object Pages to your projects. An Object Page contains data produced by another application on your system such as a word processor or CAD package. When you want to edit the data the application which created it is called up.




Buy ProSteel now for immediate download    Try ProSteel now - download the demo version

Price list

If you are a registered user of

Price (single copy) including manual

ProSteel 1, 2, 3 or 4
ProSteel 5 with expired update cover
£60 including 12 months update cover
from date of purchase*
SuperBeam 1, 2, 3, 4 or 7 £100 do.*
None of the above - i.e. first time buyers £200 do. BUY NOW

All prices subject to VAT and subject to change without notice

For additional copy licences, site licences and update cover pricing see our ordering information page

* To get this price go to www.superbeam.co.uk/renew.
You will need your Greentram user number and postcode.


All our programs run on Windows XP, Vista and Windows 7/8/10 (32-bit or 64-bit) systems.

Free download:

Try ProSteel now

Buy now

ProSteel
